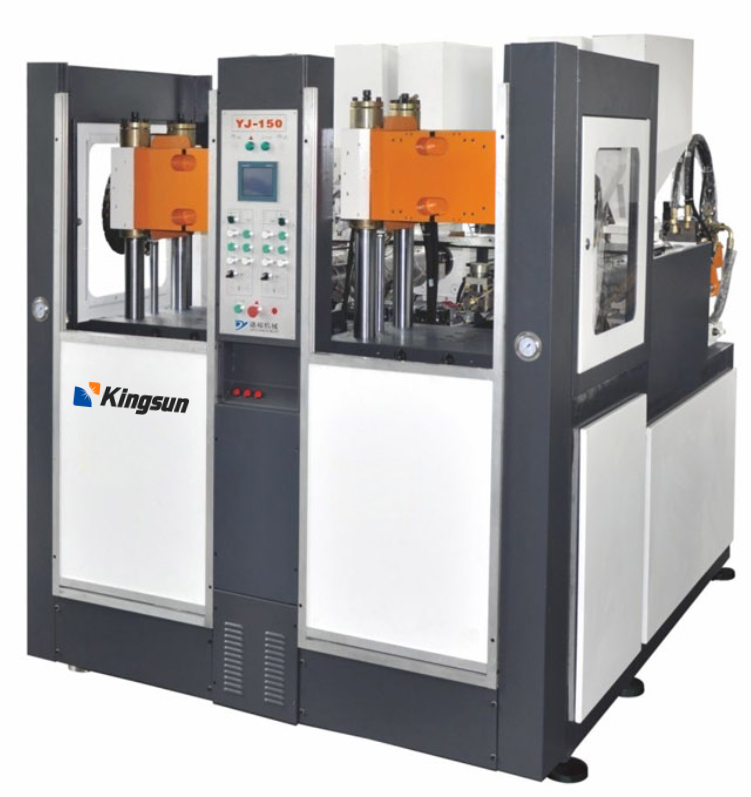

Full-auto Vertical TR/TPU Injection Machine
Product Description
Capable of producing various thermoplastic materials such as TR, TPR, TPU, etc.
Direct clamping system equipped with a fast mold locking structure.
0~90°~180° tilting mechanism provides multiple production modes, enabling the production of single-color and two-color shoe soles.
Automatic mold height adjustment with mold space of 80-200mm.
Integrated oil tank and electrical control cabinet for a small footprint.
Touchscreen HMI for easy operation.
Technical Specifications
| Parameter | Unit | YJ-150 |
|---|---|---|
| Number of Workstations | stations | 2 |
| Clamping Force | ton | 150 |
| Mold Opening Stroke | mm | 370 |
| Platen Size | mm | 480×550 |
| Standard Mold Thickness | mm | 80-200 |
| Number of Hydraulic Motors | n | 4 |
| Screw Diameter | mm | Φ55×4 |
| Screw Speed | r.p.m | — |
| Injection Volume | cc | 1000 |
| Plasticizing Capacity | g/s | — |
| Total Installed Power | kw | 38 |
| Machine Weight | kg | 10,000 |
| Machine Dimensions | mm | 2200×2700×2600 |
The above technical specifications are for reference only. Any changes or modifications are subject to notice without prior notification.
Note: Fields marked with “—” indicate that the value was not provided in the original document. The machine dimensions in the original document were split across two rows (260 and 0) and have been combined as 2600mm for the height dimension.
