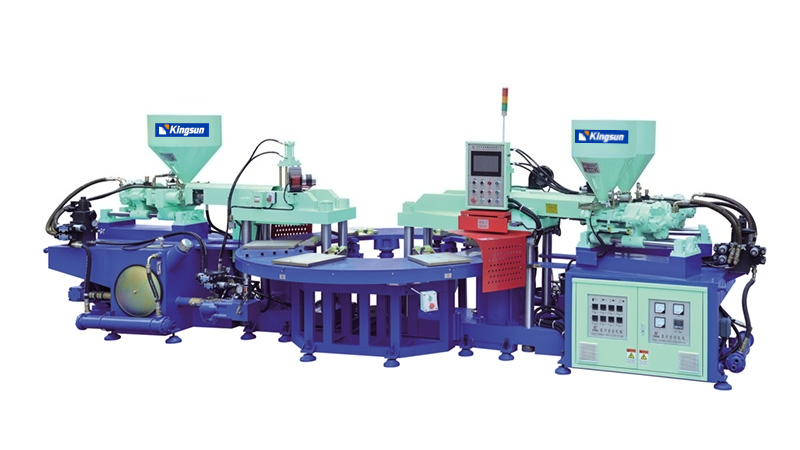

Full-auto Rotary 3/4-color Strap Injection Machine

Product Description

Specialized Production: Professionally produces single-color, two-color, three-color (and four-color) PVC sandal and slipper straps, as well as children’s and women’s shoe soles.
Cost-Effective Design: The main and auxiliary machines feature an integrated design without separate frames, reducing procurement costs.
Easy Operation: Large touch screen + PLC communication control, offering simple operation and lowering operator skill requirements.
Mold Protection: Automatic powder-stage mold clamping mechanism – adjusts fast and slow speed zones according to mold thickness to protect the mold.
Optimized Mechatronics: With the same configuration, output increases by approximately 15%, achieving low energy consumption and high production.
Robust Structure: The main and auxiliary machines adopt an improved four-column structure, resulting in minimal deformation, long service life, and stable product quality.
Eco-Friendly Cooling Option: Optional air-cooled cooling unit – no water connection required, environmentally friendly and energy-saving.

Technical Specifications

Parameter	Unit	YJ6306C	YJ6308C	YJ6310C	YJ6312C	YJ6406	YJ6408	YJ6410	YJ6412
Raw Material	—	PVC/TPR	PVC/TPR	PVC/TPR	PVC/TPR	PVC/TPR	PVC/TPR	PVC/TPR	PVC/TPR
Number of Workstations	station	6	8	10	12	6	8	10	12
Injection Capacity	cm³	350, 270×2	350, 270×2	350, 270×2	350, 270×2	350, 270×3	350, 270×3	350, 270×3	350, 270×3
Screw Diameter	mm	Φ50(Φ55), Φ45×2	Φ50(Φ55), Φ45×2	Φ50(Φ55), Φ45×2	Φ50(Φ55), Φ45×2	Φ50(Φ55)	Φ50(Φ55), Φ45×3	Φ50(Φ55), Φ45×3	Φ50(Φ55), Φ45×3
Screw Speed	r.p.m	0~120	0~120	0~120	0~120	0~120	0~120	0~120	0~120
Clamping Force	ton	80/120/150	80/120/150	80/120/150	80/120	80/120/150	80/100/120	80/100/120	80/120
Mold Space	mm	420×350×135	420×350×135	420×350×135	420×350	420×350×135	350×350×1	350×350×1	350×350
Heating Power	KW	20	20	20	20	26	26	26	26
Motor Power	KW	11×2	11×2	11×2	11×2	11×2	11×2	11×2	11×2
Total Installed Capacity	KW	58	58	58	58	48	48	48	48
Machine Height Range	mm	30~155	30~155	30~155	30~155	30~135	30~135	30~135	30~135
Machine Dimensions (L×W×H)	mm	7200×2650×1800	7200×2650×1800	7600×2650×1800	7000×3150×1800	6830×2590×2360	6830×2590×2360	6830×2590×2300	7000×3150×2360
Machine Weight	kg	9,000	10,000	10,300	10,500	11,000	11,300	11,600	12,500

Note: The original table contains inconsistent data entries (e.g., YJ6312C has two values for mold space). The translation preserves the original presentation. Please verify against the original technical datasheet.
