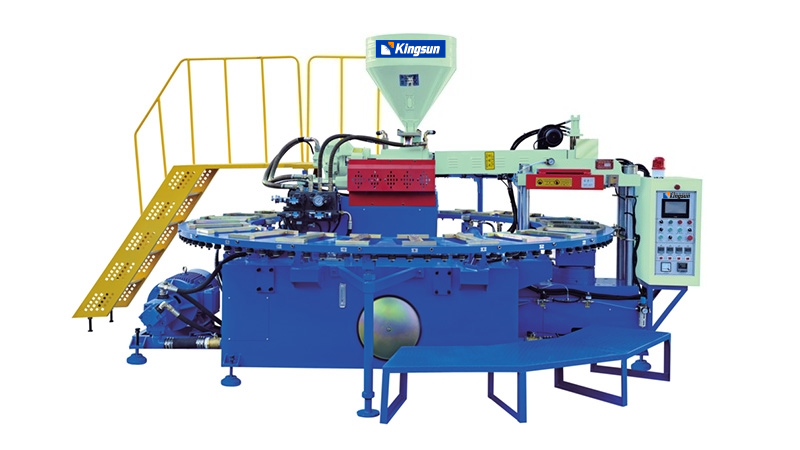

Plastic Footwear Air-blowing Injection Machine

Product Description

Applicable Product Range: This machine is capable of producing highly elastic, ultra-light foamed PVC slippers, injection-connected casual shoes, and athletic shoes. It can also produce blown, crystal, and other single-color, two-color, and three-color sandals and slippers.
Structure & Cooling: Unique mechanical design accommodates larger molds. Equipped with a mold cooling device, offering easy operation and producing more perfect finished products.
Motion Control: Major mechanical actions (such as injection, material feeding, turntable indexing, mold clamping, etc.) are all programmed into the programmable controller, ensuring precise machine movements.
Pressure Control: Equipped with a digital proportional controller that simultaneously controls mold clamping pressure, injection pressure, and material feeding pressure.
Energy-Saving System: Equipped with a servo energy-saving system, reducing electricity consumption by approximately 30%.

Technical Specifications

Parameter	Unit	YJ-5124C	YJ-5224C	YJ-5324C
Raw Material		PVC/TPR	PVC/TPR	PVC/TPR
Number of Workstations	stations	24	24	24
Clamping Force	ton	70	70	70
Mold Height Capacity	mm	280	280	280
Screw Diameter	mm	65/75	65/75	65/65/75
Max. Injection Volume	g	600/800	600/800	600/600/800
Injection Pressure	kg/cm²	140	140	140
Injection Speed	cm/sec	0-10	0-10	0-10
Screw Speed	r.p.m	0-165	0-165	0-165
Temperature Control Zones	stations	4	4	4
Barrel Heating Power	kw	6.9	6.9×2	6.9×3
Motor	kw	22	22	22
Total Power Consumption	kw	29	65	90
Machine Dimensions	mm	5000×3750×2600	7000×4200×2600	8000×5200×2600
Machine Weight	kg	6500	11500	18000

The above technical specifications are for reference only. Any changes or modifications are subject to notice without prior notification.
