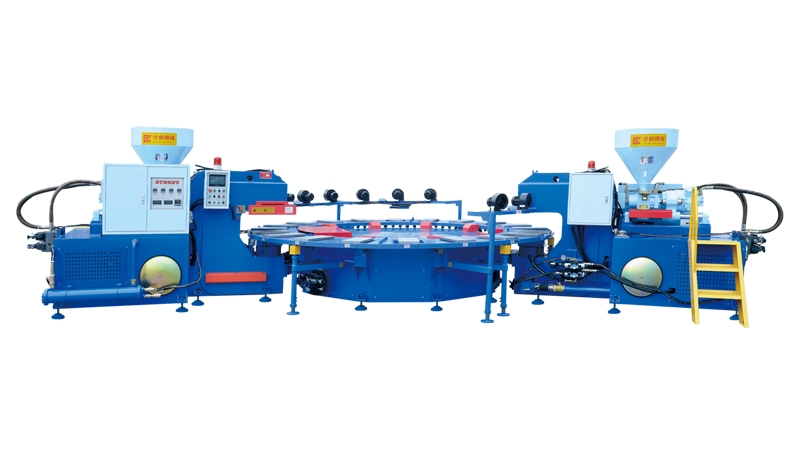

Dual / Triple Color TPR / PVC Sole Injection Machine
- Capable of producing dual-color and triple-color TPR/PVC outsoles and sheets.
- Featuring a unique structural design that accommodates larger molds, equipped with a mold cooling system for easier operation and improved product quality.
- Core mechanical operations such as injection, feeding, rotary indexing, and mold clamping are controlled by a programmable logic controller (PLC), ensuring high precision and stable performance.
- Equipped with a digital proportional control system to precisely regulate clamping pressure, injection pressure, and feeding pressure simultaneously.
- Integrated with a servo-driven energy-saving system, reducing power consumption by approximately 30%.Model:
SC-720-2 | SC-724-2 | SC-720-3 | SC-724-3 | SC-720-3 | SC-724-3Material:
PVC / TPRStations:
20 | 24 | 20 | 24 | 20 | 24Clamping Force (ton):
60 / 60Mold Height (mm):
220Screw Diameter (mm):
50 / 60 | 50 / 60 | 50 / 50 / 60 | 50 / 50 / 60 | 50 / 50 / 60 | 50 / 50 / 60Max. Injection Volume (g):
450 / 500 | 450 / 500 | 450 / 450 / 500 | 450 / 450 / 500 | 450 / 450 / 500 | 450 / 450 / 500Injection Pressure (kg/cm²):
140Injection Speed (cm/sec):
0 – 10Screw Speed (rpm):
0 – 125Heating Zones:
4Barrel Heating Power (kW):
16.5Motor Power (kW):
15 / 18.5 | 15 / 18.5 | 15 / 15 / 18.5 | 15 / 15 / 18.5 | 15 / 15 / 18.5 | 15 / 15 / 18.5Total Power Consumption (kW):
70 | 70 | 42.5 | 70 | 90Machine Dimensions (mm):
10000 × 4200 × 2600
9000 × 5200 × 2600
8000 × 4200 × 2600
9000 × 5200 × 2600
10000 × 4200 × 2600
10000 × 5200 × 2600Machine Weight (kg):
18500 | 21000 | 15000 | 16000 | 18500 | 21000
