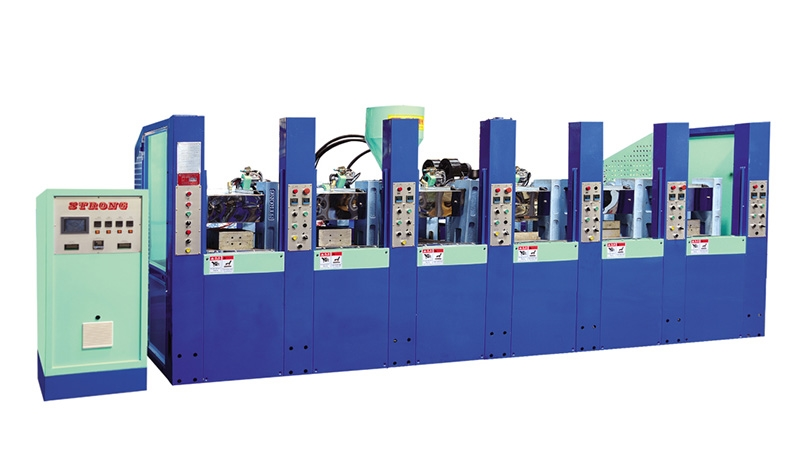

Plastic Injection Molding Machine

Designed with advanced mechatronic integration, the machine offers a high level of automation in measurement and control, ensuring excellent reliability. The user-friendly human-machine interface (HMI) provides clear operation guidance, making it easy to learn and operate.
Featuring strong versatility, this machine is compatible with a wide range of raw materials, enabling the production of high-quality footwear components. It is an ideal choice for manufacturers seeking to enhance competitiveness and upgrade production equipment.Model:
SC-206N1 | SC-206N2Applicable Materials:
TPU / TR / TPR / PVC

Stations:
6 | 6

Clamping Force (ton):
100 | 100

Screw Diameter (mm):
65 | 65

Theoretical Injection Volume (g):
900 | 900

Injection Pressure (kg/cm²):
0 – 800 | 0 – 800

Injection Speed (cm/sec):
0 – 10 | 0 – 10

Screw Speed (rpm):
0 – 165 | 0 – 165

Temperature Control Zones:
4 | 4

Barrel Heating Power (kW):
5.5 | 5.5

Mold Heating Power (kW):
38.4 | 57.6

Total Power Consumption (kW):
63 | 100

Oil Tank Capacity (L):
800 | 800

Machine Dimensions (mm):
5500 × 4150 × 2100 | 5500 × 4390 × 2100

Machine Weight (kg):
13200 | 14500
