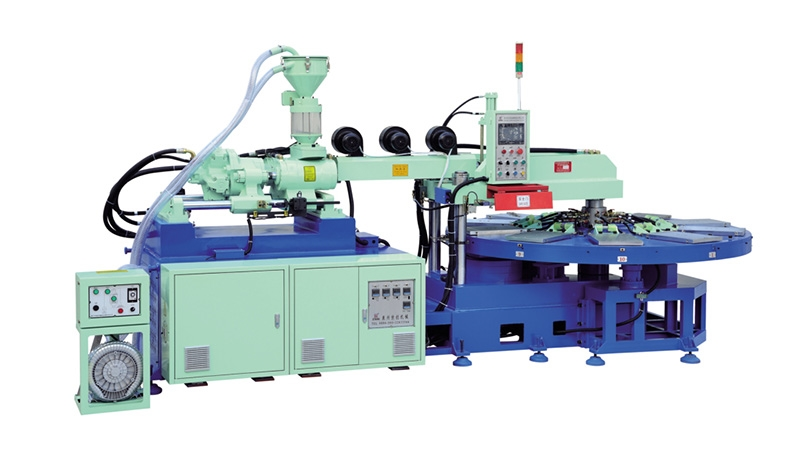

Rotary TPU Footwear Injection Machine
- Equipped with an automatic sliding mold and mold-turning structure, reducing labor intensity while improving production efficiency, safety, and operational stability.
- Integrated servo control system achieves energy savings of up to 30%.
- The hydraulic system adopts a logical circuit design, ensuring stable pressure and fast mold opening and closing speed.
- Wall-plate frame structure provides high rigidity and resistance to deformation.
- In the fully automatic version, the middle plate is lifted automatically, ensuring safe and stable operation.
- Featuring a unique machine body structure that resists cracking and deformation, delivering optimal production performance.
- Electrical control system adopts internationally recognized brand components for reliability.
- Centralized hydraulic control system equipped with a cooler and filter, extending the service life of hydraulic components.
- Fast, balanced, and low-noise machine operation; exhaust frequency and timing can be freely adjusted for smoother performance.
- Equipped with an emergency lowering switch, allowing immediate stop and descent to ensure safety of operators, molds, and products.
- The production process supports semi-automatic and fully automatic continuous operation modes, which can be independently controlled with high reliability.
-
Suitable for molding various rubber products, including:
- Single-color and dual-color rubber soles
- Conductive rubber components
- Automotive rubber parts
- Model:
QF-7208BS
Stations: 8
Heating Method: Electric / Oil
Clamping Force: 180 ton
Motor Power: 20 HP
Mold Size: 450 × 500 mm
Layers: 2
Machine Dimensions: 9.71 × 2.3 × 2.4 m
Platen Spacing: 205 mm - Model:
QF-7206CS
Stations: 6
Heating Method: Electric / Steam / Oil
Clamping Force: 180 ton
Motor Power: 20 HP
Mold Size: 450 × 500 mm
Layers: 2
Machine Dimensions: 7.66 × 2.28 m
Platen Spacing: 205 mm - Model:
QF-7208AS Vulcanizing Machine
Stations: 8
Heating Method: Electric / Steam / Oil
Clamping Force: 180 ton
Motor Power: 20 HP
Mold Size: 450 × 500 mm
Machine Dimensions: 7.6 × 1.7 × 2.0 m
Platen Spacing: 205 mm - Model:
QF-7208AS
Stations: 8
Heating Method: Electric / Steam / Oil
Clamping Force: 180 ton
Motor Power: 20 HP
Mold Size: 450 × 500 mm
Layers: 2
Machine Dimensions: 9.5 × 1.7 × 2.0 m
Platen Spacing: 205 mm - Model:
QF-6S-150T Rubber Sole Hydraulic Press
Stations: 6
Heating Method: Electric
Clamping Force: 125 / 150 ton
Motor Power: 20 HP
Mold Size: 450 × 500 mm / 500 × 600 mm
Layers: 2
Machine Dimensions: 7.5 × 1.7 × 2.0 m
Platen Spacing: 180 / 200 mm
